Granule Technology™

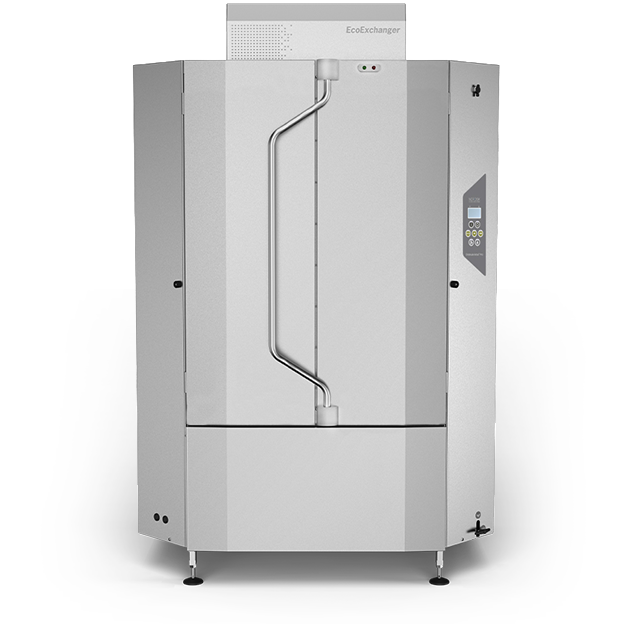

Granule Maxi Pro

Front-loaded pot washer with high capacity for large operations

Granule Maxi Pro is our largest model, with the highest hourly through-put - and it just got even bigger.

Developed towards larger production facilities, it handles a high volume of pots and pans as well as intense washing peaks with ease. Customize your Granule Maxi Pro with additional accessories to add flexibility and increase loading options.

Use as a compact, stand-alone solution with retractable loading cassette, or as a system with multiple cassettes, wall-mounts, and trolleys.

Granule Maxi 620x620_transparent (1)

Maximum output for production ranging from 800 to 4000 hot meals a day

The Granule Maxi Pro model is suitable for large production kitchens, preparing between 800 and 4000 hot meals daily. However, the production and distribution processes are significant for actual fit, and might override the meals-per-day indication.

Granule Maxi Pro is available in three different editions: Compact, Flow, and FreeFlow. Each edition comes with carefully selected standard accessories and can be further customized to your needs by adding one or more smart accessories.

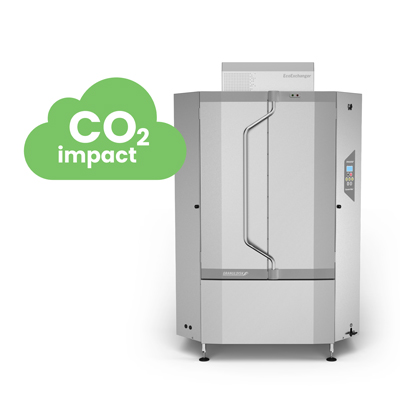

CO2 impact with Granule Maxi Pro

Materials: 2.6 tCO2e

Use: 11.5 tCO2e



(Compared to washing in sinks - 52 tCO2e)



Direct use-phase emissions calculated from an estimated lifespan of 12.5 years, 320 wash days/year
(emission factor 153.95). For more details on LCA calculations for Nor:disk products, please contact us at sustainability@nordiskclean.com

CO2 Impact Maxi 400X400

Energy optimization with GD Link

GD Link is an energy optimization feature that can be fitted to all our granule-based ware washers and allows for the machine to communicate with systems that are based on the DIN 18875 standard.

GD Link enables connecting and controlling the machine through a central energy optimization unit, which helps to avoid any production disruptions in individual devices as the shutdown periods are computer-controlled and automatically reduced to a minimum. It also eliminates the instantaneous energy peaks that can happen when multiple types of equipment run simultaneously.

With the machine connected to an energy optimization system, you will minimize the overall peak load and at the same time minimize disruptions. GD link is possible to retrofit on all granule-based models dating back to 2015.

Talk to your local Nor:disk representative to learn more and order GD Link.

GD Link2

Marine Option

Need your solution to work within a marine or offshore operation? No problem.



Our Marine Option add-on ensures a stable, reliable, and safe pot washing solution - even when waters are rough.

Available for the Compact edition.

SIMpel™

Let us introduce you to a feature that will make your work-life easier, whether you are an end-user or a service partner. We call it SIMpel™. A smart tool that connects you with an online portal filled with all the relevant information about your Nor:disk industrial warewasher.

Read more about it! →
Image And Text 840X840 QR code Scan

Want to see it live?

At Nor:disk, we’re proud of our performance. We want you to be able to experience it first-hand and see all the benefits that our pot washers provide. Meet us in a local showroom, reference kitchen, or join us via live stream and we will talk you through our technology, and what it can do for you.

Book a demo →
Image W Text 800X622 Livewash

Granule Maxi Pro technical details

Editions
Compact Edition / Flow Edition / FreeFlow Edition
Outer dimensions (H x W x D)
2 039 ±25 x 1 452/1 842 x 1 075/1 682 mm
Wash programs with granules:
ECO: 2 min 40 sec/ Short: 4 min 50 sec/ Normal: 6 min 50 sec
Wash programs without granules:
ECO: 2 min 40 sec/ Short: 3 min 40 sec/ Normal: 5 min 40 sec
Hourly capacity max./normal (normal incl. handling):
264/168 (Compact) / 264/204 (Flow) / 264/228 (FreeFlow) GN 1/1
Capacity per program:
12 GN 1/1 up to 65 mm depth or 8 GN 1/1 up to 200 mm. 6 GN 2/1 up to 65 mm depth or 4 GN 2/1 up to 200 mm.
Wash / rinse temp:
65 °C / 85 °C

Pros

Web Icn Capacity

HIGH CAPACITY

Web Icn Water Vatten

WATER-SAVING

Web Icn 2:40 Min Sol

TIME-SAVING

Web Icn Chemicals Havtorn

CHEMICAL-SAVING

Web Icn Steam Reduction Himmel

Steam reduction

Dosing Equipment Midnatt

Dosing equipment

Web Icn Hygiene New Havtorn

HACCP wash log

Web Icn Reminders Sol

Auto-reminders

Web Icn Ecoexchanger Gräs

EcoExchanger

Web Icn Perfect Vatten

3 cycles and 2 modes

4.0 Ready

Future proof

Web Icn Capacity

HIGH CAPACITY

Wash up to 12 GN 1/1 or 6 GN 2/1 per cycle - up to 264 GN 1/1 or 132 GN 2/1 or 264 GN 1/2 per hour. Wash with or without PowerGranules BIO®

Web Icn Water Vatten

WATER-SAVING

Saves on average 1.820 litres per day, adding up to 540.000 litres per year.

Web Icn 2:40 Min Sol

TIME-SAVING

Clean wares in 2.40 minutes - pre-washing eliminated

Web Icn Chemicals Havtorn

CHEMICAL-SAVING

Saves on average 2.6 litres per day, adding up to 780 litres per year.

Web Icn Steam Reduction Himmel

Steam reduction

Granule Maxi Pro is standard fitted with steam reduction, which serves for a better climate and working conditions and lowers the ventilation requirements in the pot wash area.

Dosing Equipment Midnatt

Dosing equipment

Liquid detergent and rinse aid dosing dispenser with peristaltic pump and detergent dosing sensor is available as an optional factory-fitted add-on.

Web Icn Hygiene New Havtorn

HACCP wash log

The control system stores vital HACCP data for up to 200 wash cycles. The data log can be accessed via the control panel display or exported to a USB stick for further use or storage.

Web Icn Reminders Sol

Auto-reminders

The smart control system keeps track of the number of run wash cycles and reminds you when it's time to change wash water, granules, and to schedule your next preventive maintenance appointment.

Web Icn Ecoexchanger Gräs

EcoExchanger

The add-on EcoExchanger cleverly combines steam reduction and heat recovery in one and improves the working environment while also reducing the energy needed for heating the wash tank by up to 33%.

Web Icn Perfect Vatten

3 cycles and 2 modes

Wash hygienically clean in minutes, using a minimum of natural resources! No pre-washing needed - just scrape and load, then choose cycle length and wash mode. There are 2 different modes you can use, granule mode or water-only mode. It all depends on what you need to wash and how severely dirty or burnt it is.

4.0 Ready

Future proof

Granule Maxi Pro is Industry 4.0 ready, meaning it will be compatible with future features and functions.

Web Icn Capacity

HIGH CAPACITY

Web Icn Water Vatten

WATER-SAVING

Web Icn 2:40 Min Sol

TIME-SAVING

Web Icn Chemicals Havtorn

CHEMICAL-SAVING

Web Icn Steam Reduction Himmel

Steam reduction

Dosing Equipment Midnatt

Dosing equipment

Web Icn Hygiene New Havtorn

HACCP wash log

Web Icn Reminders Sol

Auto-reminders

Web Icn Ecoexchanger Gräs

EcoExchanger

Web Icn Perfect Vatten

3 cycles and 2 modes

4.0 Ready

Future proof

Web Icn Capacity

HIGH CAPACITY

Wash up to 12 GN 1/1 or 6 GN 2/1 per cycle - up to 264 GN 1/1 or 132 GN 2/1 or 264 GN 1/2 per hour. Wash with or without PowerGranules BIO®

Models

Image And Text 840X840 Maxi Flow

Granule Maxi Pro Flow Edition

Adds flexibility and makes your setup more ergonomic with two cassettes, a trolley and wall-mounted hooks with wall protection, on which the cassettes can be hung. The trolley is used to change cassettes and can also be used to collect and transport washware around the washroom or the kitchen. Fits operations ranging from 800 - 4000 meals/day. Capacity incl. handling/h: 204 GN 1/1

Image And Text 840X840 Maxi Freeflow

Granule Maxi Pro FreeFlow Edition

Offers maximum flexibility, flow and capacity with two trolleys and two cassettes. The setup allows for multitasking and emptying/filling one cassette while the other is being washed. Increases speed, flow and flexibility of the whole pot wash area. Fits operations ranging from 800 - 4000 meals/day. Capacity incl. handling/h: 228 GN 1/1

Image And Text 840X840 Maxi Compact

Granule Maxi Pro Compact Edition

A stand-alone version that works with washing in a sliding Pro cassette. The Pro cassette offers loading of washware at three levels. Add a few accessories to load a multitude of other kitchen utensils, pots and pans of different sizes. Fits operations ranging from 800 - 1500 meals/day. Capacity incl. handling/h: 168 GN 1/1

Case

PLAY - 00:03:12 ▸

Maten é klar - Customer Case 2024

- The machine paid for itself already in the first year, says Fredrik Andersson, CEO at Maten é klar, about their Granule Maxi Pro machine from Nor:disk. Could this also be the right solution for your kitchen? Listen to the story...

Procassette Containers 840X840

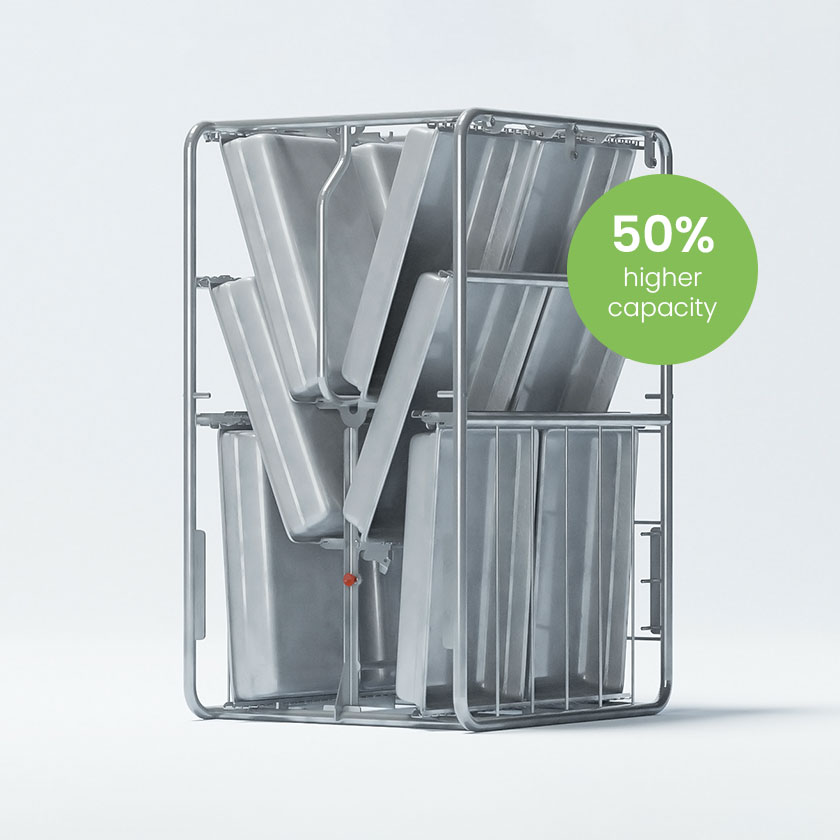

Same size - 50% higher capacity!

Get more done and save valuable time with the new and improved Pro cassette. Product highlights:

The new Pro cassette is included in all Granule Maxi Pro Editions.

You can easily upgrade your existing Granule Maxi to the new Pro cassette. Read more
