Granule Technology™

Granule Flexi

Space-saving front-loaded pot washer for small to medium operations

Granule Flexi caters to the varying needs of small and medium-sized kitchens and is a versatile, compact, and efficient solution.

Ideal for both the à la carte kitchen with a mix of pots, pans and utensils and for the pure Gastronorm kitchen - it all comes down to which edition you choose.

Available in editions customized for washing à la carte utensils, or the GN range

Granuldisk flexi

Flexible solution for production ranging from 300 to 600 hot meals a day

Granule Flexi is a front-loaded granule pot washer that fits operations ranging between 300 and 600 meals per day and is available in two different editions. Each edition comes with carefully selected standard accessories and can be further customized to your needs by adding one or more smart inserts.

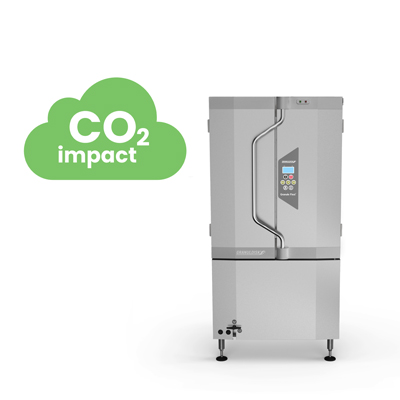

CO2 impact with Granule Flexi

Materials: 1.4 tCO2e

Use: 6 tCO2e



(Compared to washing in sinks - 52 tCO2e)



Direct use-phase emissions calculated from an estimated lifespan of 12.5 years, 320 wash days/year (emission factor 153.95).

For more details on LCA calculations for Nor:disk products, please contact us at sustainability@nordiskclean.com

CO2 Impact Flexi 400X400

Energy optimization with GD Link

GD Link is an energy optimization feature that can be fitted to all our granule-based ware washers and allows for the machine to communicate with systems that are based on the DIN 18875 standard.

GD Link enables connecting and controlling the machine through a central energy optimization unit, which helps to avoid any production disruptions in individual devices as the shutdown periods are computer-controlled and automatically reduced to a minimum. It also eliminates the instantaneous energy peaks that can happen when multiple types of equipment run simultaneously.

With the machine connected to an energy optimization system, you will minimize the overall peak load and at the same time minimize disruptions. GD link is possible to retrofit on all granule-based models dating back to 2015.

Talk to your local Nor:disk representative to learn more and order GD Link.

GD Link2

SIMpelSIMpel™

Let us introduce you to a feature that will make your work-life easier, whether you are an end-user or a service partner. We call it SIMpel™. A smart tool that connects you with an online portal filled with all the relevant information about your Nor:disk ware-washer.

SIMpel →
Image And Text 840X840 QR code Scan

Want to see it live?

At Nor:disk, we’re proud of our performance. We want you to be able to experience it first-hand and see all the benefits that our pot & pan washers provide. Meet us in a local showroom, reference kitchen, or join us via live stream and we will talk you through our technology, and what it can do for you.

Book a demo →
Image W Text 800X622 Livewash

Granule Flexi technical details

Editions
Flexible Edition / Gastronorm Edition
Outer dimensions (H x W x D)
1,775 mm (±25) x 870/1836 mm x 1017/1379 mm
Wash programs with granules:
ECO: 2 min 30 sec/ Short: 4 min 40 sec/ Normal: 6 min 40 sec
Wash programs without granules:
ECO: 2 min 30 sec/ Short: 3 min 40 sec/ Normal: 5 min 40 sec
Hourly capacity max./normal (normal incl. handling):
96/76 GN 1/1 or similar in other pots. Max depth 200 mm.
Capacity per program:
4 GN 1/1, or 8 GN 1/2, or 1 x GN 2/1 + 2 x GN 1/1 or similar in other pots. Max. depth 200/150 mm.
Wash / rinse temp:
65 °C / 85 °C

Pros

Web Icn Capacity

HIGH CAPACITY

Web Icn Water Vatten

WATER-SAVING

Web Icn 2:30 Min Sol

TIME-SAVING

Web Icn Chemicals Havtorn

CHEMICAL-SAVING

Web Icn Perfect Vatten

3 cycles, 2 modes

Web Icn Hygiene New Havtorn

HACCP wash log

Web Icn Reminders Sol

Auto-reminders

Dosing Equipment Midnatt

Dosing equipment

Web Icn Steam Reduction Himmel

Steam reduction

Web Icn Ecoexchanger Gräs

EcoExchanger

Web Icn Capacity

HIGH CAPACITY

Wash 4 GN 1/1 per cycle - up to 96 GN 1/1 or 192 GN 1/2 per hour. Wash with or without PowerGranules BIO®

Web Icn Water Vatten

WATER-SAVING

Saves on average 520 litres per day, adding up to 155.000 litres per year.

Web Icn 2:30 Min Sol

TIME-SAVING

Clean wares in 2:30 minutes - pre-washing eliminated

Web Icn Chemicals Havtorn

CHEMICAL-SAVING

Saves on average 1 liter per day, adding up to 300 liters per year.

Web Icn Perfect Vatten

3 cycles, 2 modes

Wash hygienically clean in minutes, using a minimum of natural resources! No pre-washing needed - just scrape and load, then choose cycle length and wash mode.

Web Icn Hygiene New Havtorn

HACCP wash log

The control system stores vital HACCP data for up to 200 wash cycles. The data log can be accessed via the control panel display or exported to a USB stick for further use or storage.

Web Icn Reminders Sol

Auto-reminders

The smart control system keeps track of the number of run wash cycles and reminds you when it's time to change wash water, granules, and to schedule your next preventive maintenance appointment.

Dosing Equipment Midnatt

Dosing equipment

Liquid detergent and rinse aid dosing dispenser with peristaltic pump and detergent dosing sensor is available as an optional factory-fitted add-on.

Web Icn Steam Reduction Himmel

Steam reduction

Granule Flexi is equipped with steam reduction as standard, which contributes to a better working environment in the dish room and lowers ventilation requirements in the pot washing area.

Web Icn Ecoexchanger Gräs

EcoExchanger

The add-on feature EcoExchanger cleverly combines steam reduction and heat recovery in one and improves the working environment while also reducing the energy needed for heating the wash tank. See the functionality of EcoExchanger here

Web Icn Capacity

HIGH CAPACITY

Web Icn Water Vatten

WATER-SAVING

Web Icn 2:30 Min Sol

TIME-SAVING

Web Icn Chemicals Havtorn

CHEMICAL-SAVING

Web Icn Perfect Vatten

3 cycles, 2 modes

Web Icn Hygiene New Havtorn

HACCP wash log

Web Icn Reminders Sol

Auto-reminders

Dosing Equipment Midnatt

Dosing equipment

Web Icn Steam Reduction Himmel

Steam reduction

Web Icn Ecoexchanger Gräs

EcoExchanger

Web Icn Capacity

HIGH CAPACITY

Wash 4 GN 1/1 per cycle - up to 96 GN 1/1 or 192 GN 1/2 per hour. Wash with or without PowerGranules BIO®

Models

Image And Text 840X840 Flexi Flex Open Txt On R

Granule Flexi Flexible Edition

This edition fits the kitchen utensil set up typical for an à la carte kitchen, with a wide range of pots, pans, skillets, bowls, and utensils. The interior enables washing on two levels, where the lower rack can be modified to load GN2/1 sheets or large, deep pots (max. 700 mm deep, Ø 500 mm – requires additional short spray pipe accessory). The flexible top rack can load a range of miscellaneous wash ware from the à la carte kitchen.

Image And Text 840X840 Flexi Gn Open Txt On L

Granule Flexi Gastronorm Edition

Granule Flexi Gastronorm Edition fits kitchens that work mostly with a setup of pans and containers mainly from the Gastronorm range. The interior enables washing on two levels, where the lower rack can be modified to load GN2/1 sheets or large, deep pots (max. 700 mm deep, Ø 500 mm - requires additional short spraypipe accessory). The top rack loads GN1/1-1/9 or GN 2/1, max. 200 mm depth.

PLAY - 00:01:45 ▸

Granule Flexi

Hear Annica Bystedt, Training Manager and Product Specialist talk about Granule Flexi

Is Granule Flexi a suitable option for you?

Leave your details below and we will contact you shortly to discuss.

* By filling in the form above, you agree that Nor:disk stores your personal information. The purpose of such a task is to improve the website´s reliablility and safety for you as a visitor and to tailor your experience. We handle all personal data according to GDPR and your consent can be withdrawn when desired. You can read more about how we use cookies here: https://www.nordiskclean.com/sv-se/privacy-policy/

Related accessories

Softener

High-performance, compact commercial water softener.

Find out more →
Header Image 290X450 Kin Softner 20197

Related accessories

Fixed insert for GN containers

Retractable insert GN containers.

Find out more →
13465

Related accessories

Flexible insert - GN and mixed washware

To fit GN containers, bowls, saucepans, sieves, etc, incl 1 spare rubberband. Capacity: 2 GN1/1 up to 200 mm depth or a mix of utensils.

Find out more →
14454

Related accessories

Adjustable insert for GN containers and pots

Re-size to fit GN containers or pots.

Find out more →
13463

Related accessories

Short spray pipe

Enables washing of large pots etc.

Find out more →
26828

Related accessories

Insert for large trays

Size 600 x 400 mm, 20 mm edge.

Find out more →
13736

Related accessories

GN lids/trays insert

Sliding insert for lids and trays.

Find out more →
6001147

Related accessories

EcoExchanger

The add-on EcoExchanger cleverly combines steam reduction and heat recovery in one and improves the working environment while also reducing the energy needed for heating the wash tank.

Find out more →
Ecoexchanger Template Header Image 290X450

Related accessories

Scraper

Scraper for prescraping of containers and pots

Find out more →
Scraper

Related accessories

PowerGranules Original 10L

PowerGranules is a patented brand of Granules from Nor:disk, optimized to be used in Granule Technology™ pot washers for a sparkling clean result and a healthier machine.

Find out more →
Header Image 290X450 PG 10L

Related accessories

PowerGranules Original 20L

PowerGranules is a patented brand of Granules from Nor:disk, optimized to be used in Granule Technology™ pot washers for a sparkling clean result and a healthier machine.

Find out more →
Header Image 290X450 PG 20L

Related accessories

PowerGranules BIO 10L

PowerGranules BIO makes a great solution even better! Partly biobased and made from three main ingredients: calcium salt, rapeseed oil, and a combination of biodegradable polyesters. Enjoy the same...

Find out more →
Header Image 290X450 PGBIO 10L Green
Image And Text 840X840 Savepuse

Check out the new Save Per Use

Save Per Use is the new, convenient, easy and secure way to finance your Nor:disk warewasher. One price - all-inclusive!

Read more about it here →
Image 840X840 Urban

Let us help you find a perfect fit.

If you're new to Nor:disk, finding the right commercial dishwasher can be tricky. Contact us or a local Nor:disk Premium Partner to help you decide and plan your kitchen.

Premium Partners →
